This is the first intentional vulnerable APK I’m analysing. Without further ado, let’s get into it

1.Insecure logging

In the hint of the challenge it was given that insecure logging occurs when developers intentionally or unintentionally log the sensitive info that the user have entered such as credentials,session IDs etc.

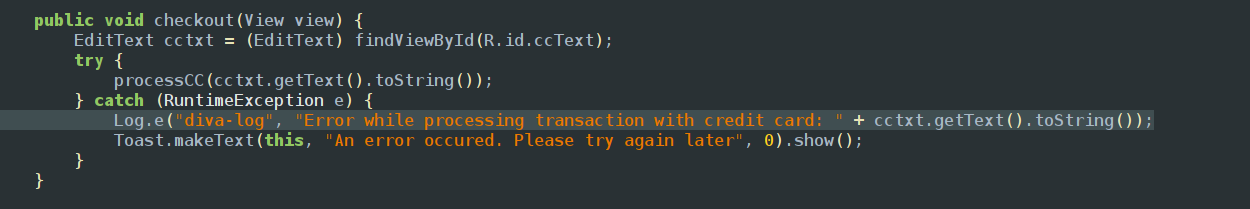

First of all I opened the apk using jadx. Then I opened the package and found many activity classes. I proceeded to the LogActivity class as it is the activity class for this challenge. And yes, inside the checkout method I found that the text that we enter is been logged.

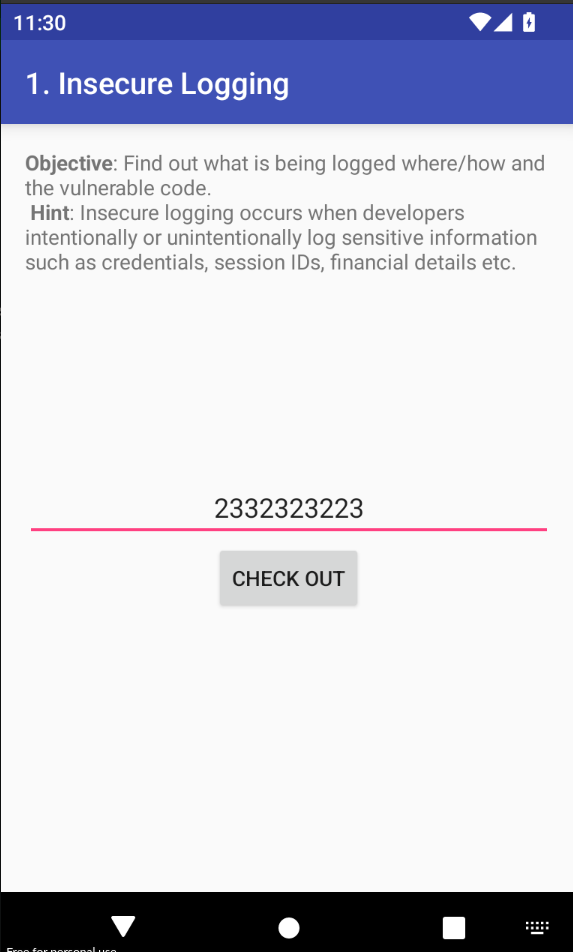

So to try it out I just entered some input on the app and to viewed the log.

To view the logs of an app you can use the command:

adb shell logcat

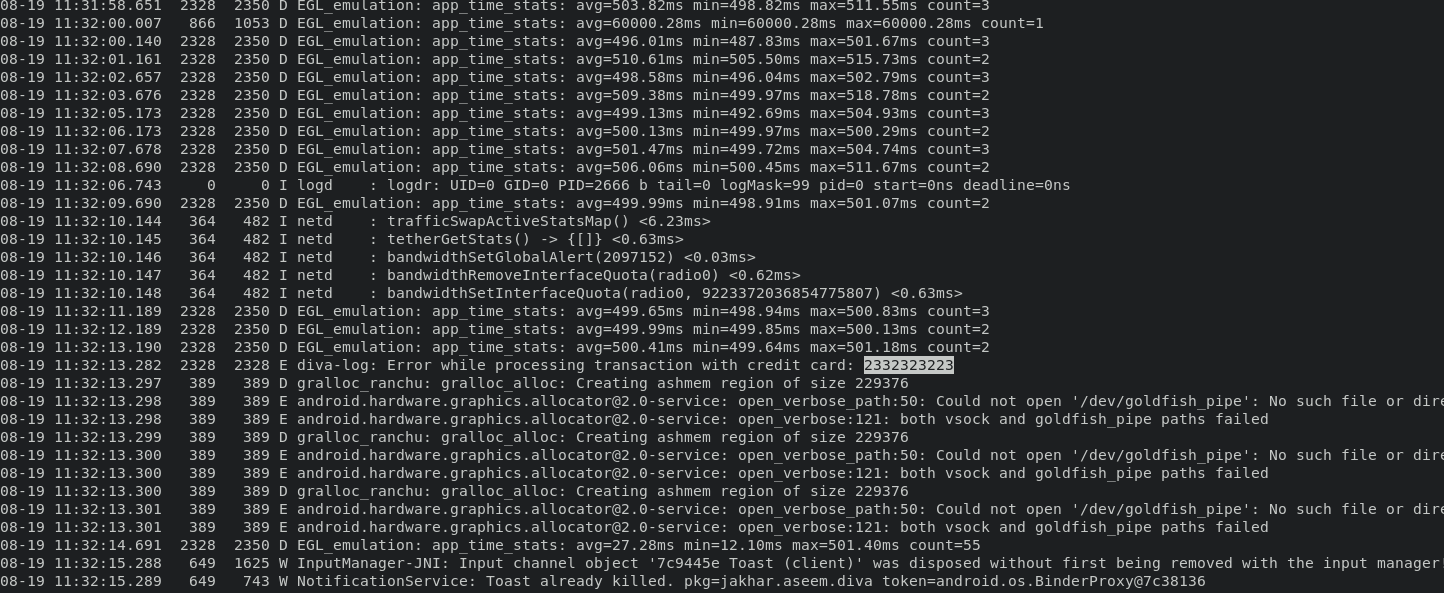

So yeah it is indeed being logged!

2.Hardcoding Issues - Part 1

So first of all I searched for what hardcoding is and found out that it is leaving the sensitive information in the source code without encrypting. Know more here

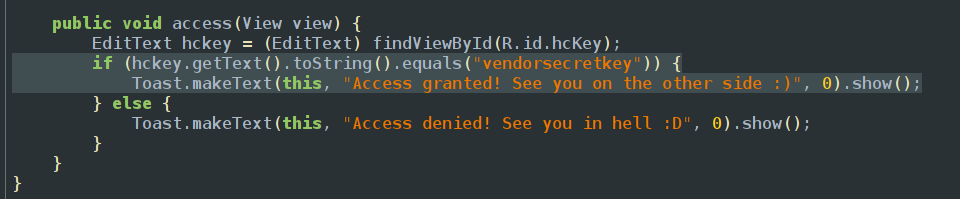

Then I analysed the APK using jadx looking for hardcoded data. In the HardcodeActivity we can see a access method in which there is a if-else condition which checks if the input in the edit text box in the app is equal to a string(vendorsecretkey) mentioned there and grants permission if it satisfies, and yeah we have found the hardcoded string.

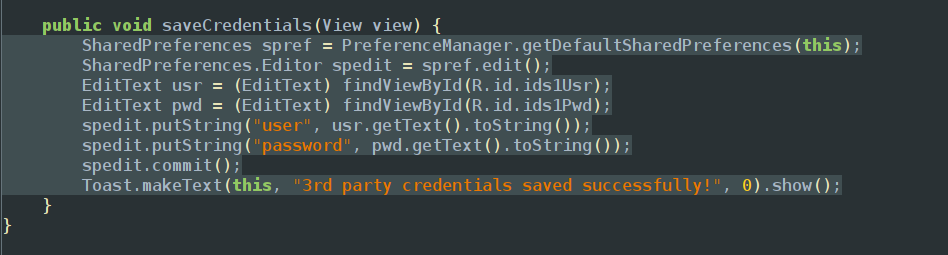

3.Insecure data storage - Part 1 In InsecureDataStorage1Activity we can see that the username and password is stored in the shared preference. Read more about Insecure data storage here. More about shared preferences here.

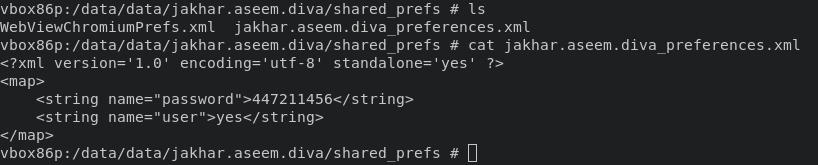

Shared preferences folder lives in data>data>package_name>shared_prefs, so here data>data>jakhar.aseem.diva>shared_prefs holds the shared preferences. After navigating into that directory I saw a WebViewChromiumPrefs.xml file inside it.

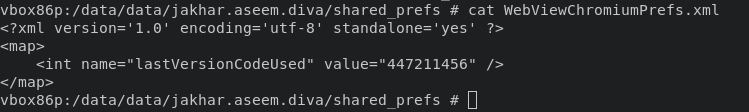

Then I opened WebViewChromiumPrefs.xml file

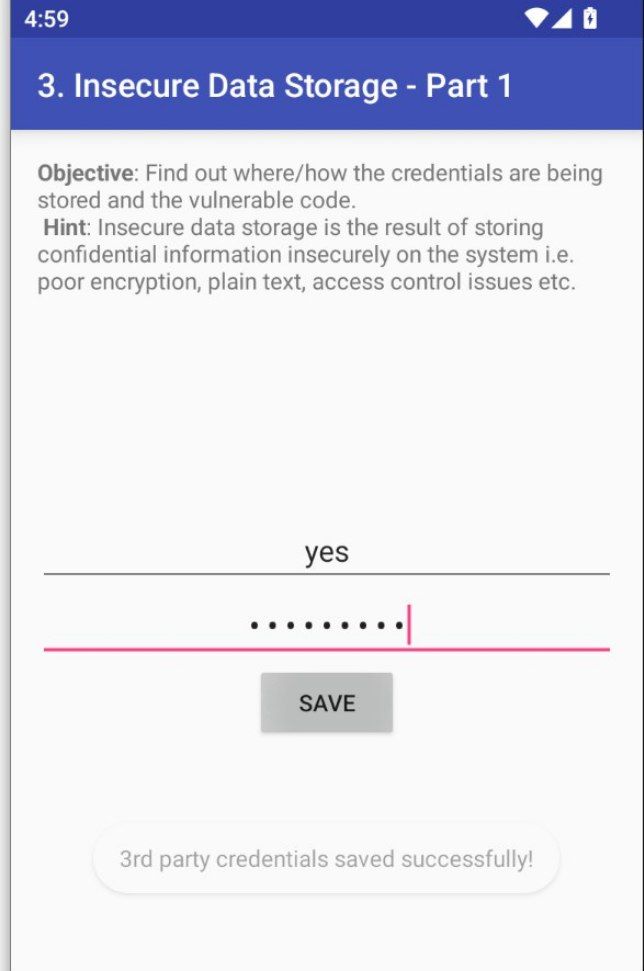

I got two values from here yes and 447211456. I entered this as username and password in the app and got the toast message saying “3rd party credentials saved successfully!”. Also the values that I entered is also stored as another xml file the shared_prefs folder!

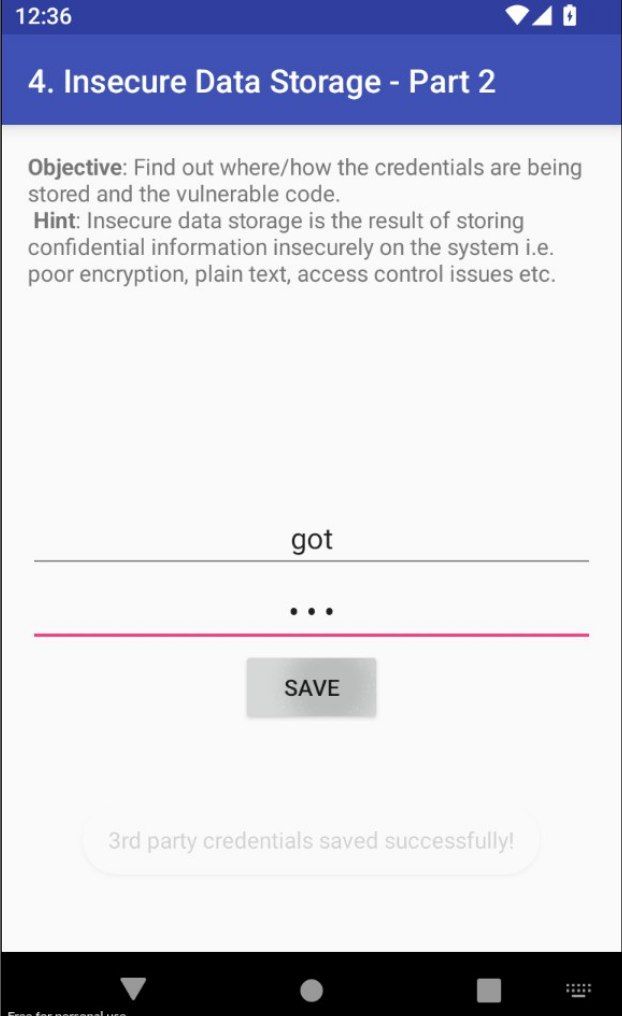

4.Insecure data storage Part-2

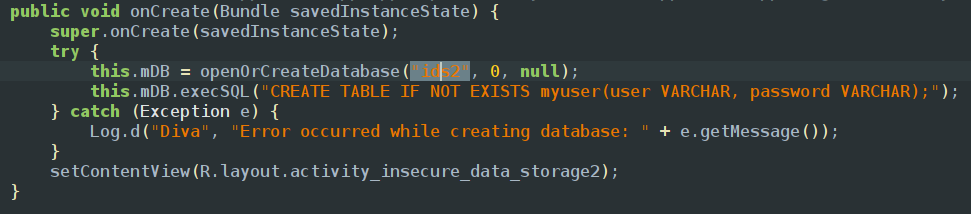

As before I went to the InsecureDataStorage2Activity class and found that it is using SQLite database to store the credentials. Using adb I went to data>data>package_name>database as all the databases are stored here and there were many files in it.

To know which database the credentials is stored I got back into the InsecureDataStorage2Activity class and it is stored in database named ids2.

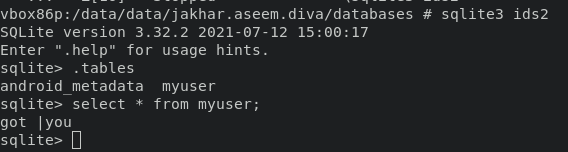

I googled how to open a database file in the terminal itself and got to know sqlite3 would help in this case.I opened the database and viewed the data in it and yeah it is being stored here!

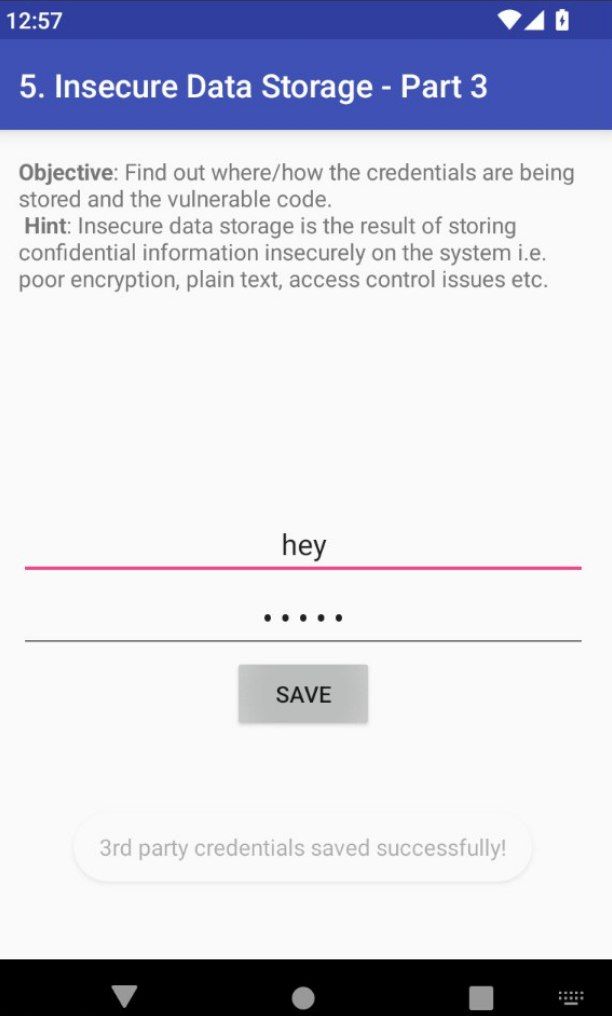

5.Insecure data storage Part-3

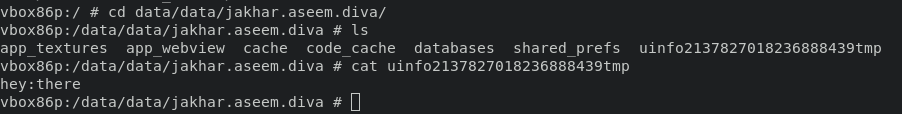

In the InsecureDataStorage3Activity class we can see that credentials are stored inside a file whose name consists of the words info and tmp. I navigated inside data>data>package_name and got to see a file name with info and tmp in it and opened it and yeah the credentials are stored there!

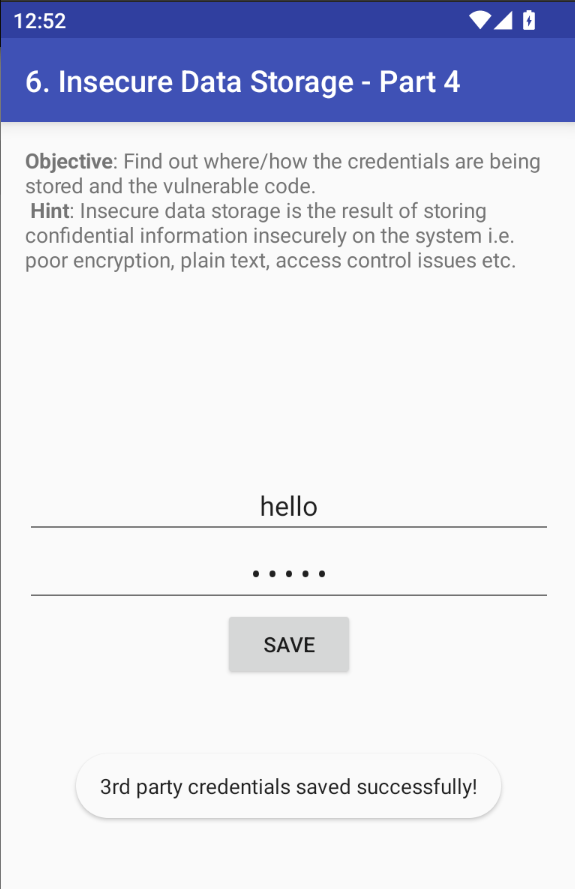

6.Insecure data storage Part-4

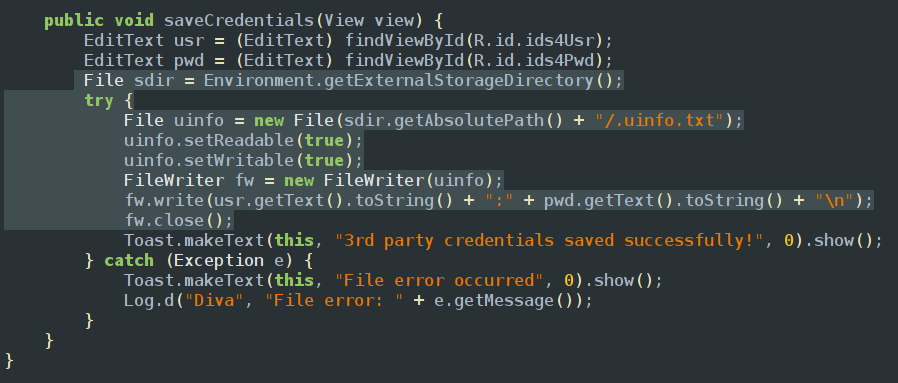

In the source code we can see two method calls getExternalStorageDirectory and getAbsolutePath which suggests that the file containing the credentials is being stored in the external storage of the device with the file name .uinfo.txt. We can also see that the file name is starting with “ . “ so its a dot file and dot files are hidden files.

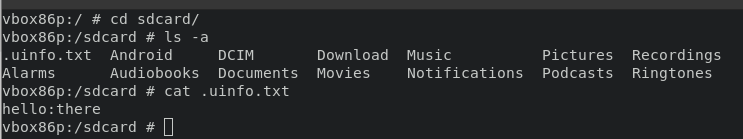

I went to the sd card directory and checked for hidden files in it using ls command with -a flag in it. And yeah it is being stored in the this directory with the file name .uinfo.txt

7.Input validation issues Part-1

’ or 1=1 —

when we input a username that we get from the source code we can see that the credentials are being shown.

8.Input validation issues Part-2

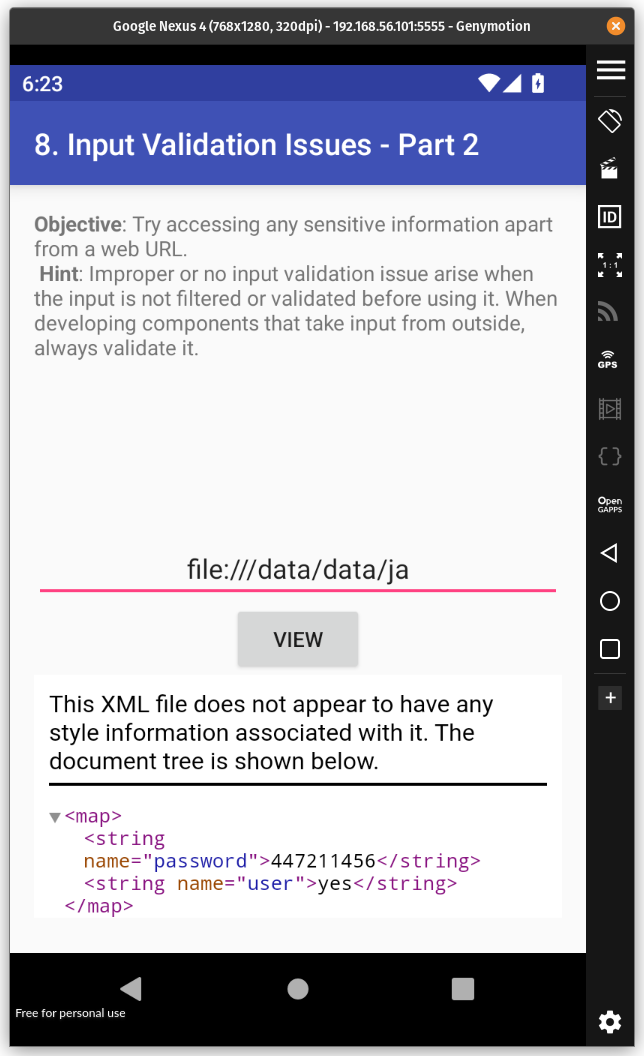

by using file:///path_to_any_file will be able to fetch any data and display it in the app

9.Access control issues Part-1

As in the challenge description, we need to access the API credentials outside from the app.

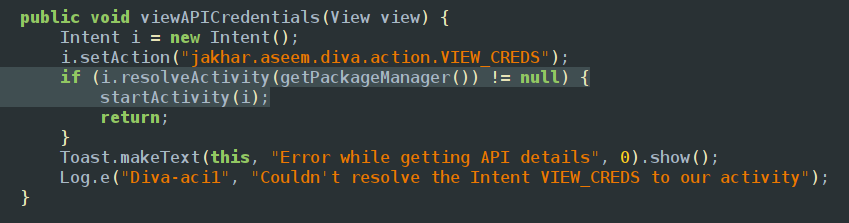

In the source code, from the AccessControlActivity I **could understand that its redirecting to another activity which contains the credentials.

So i looked for all activity in the app using adb shell. Then I saw bunch of activities in it.

dumpsys package | grep -i jakhar.aseem.diva | grep Activity - to show all the activities in the app.

dumpsys - system services.

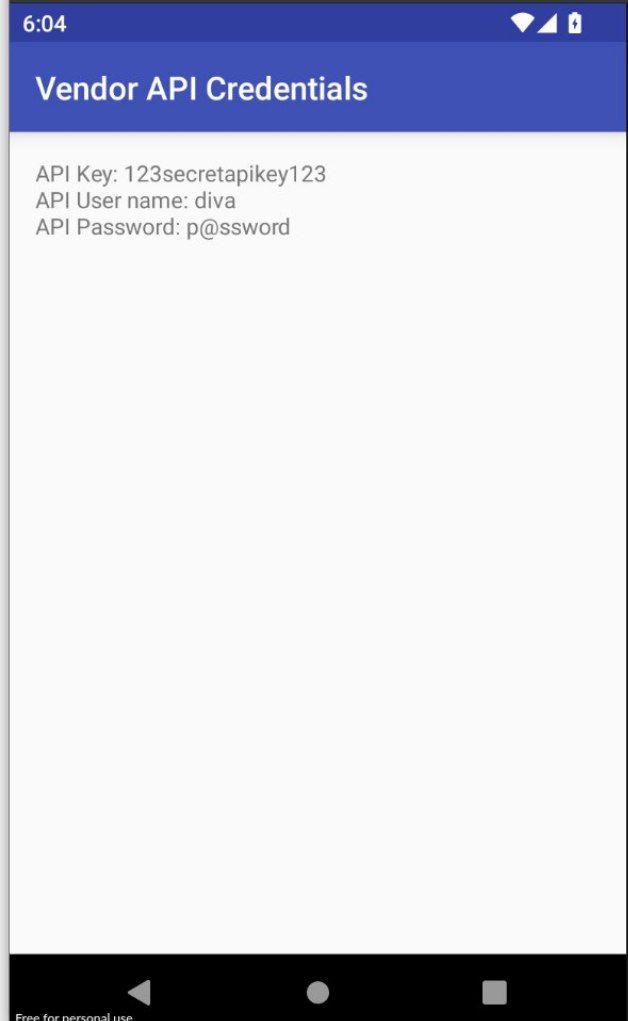

As for this challenge i tried opening the APICredsActivity and yeah the app is redirecting to the activity where API credentials are!

am start -n jakhar.aseem.diva/.APICredsActivity

10. Access control issues Part-2

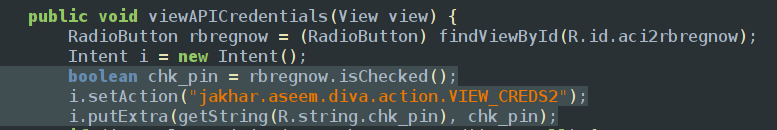

In the source code we can see that the intent passes a parameter which is of boolean value. And also the parameter is added to strings.xml file, in which we can see the actual parameter name.

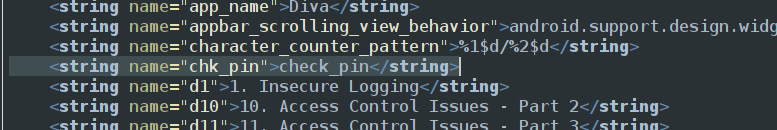

In string.xml file we can see that check_pin is the actual name of the parameter.

Now I checked for the activities present to intent to it.

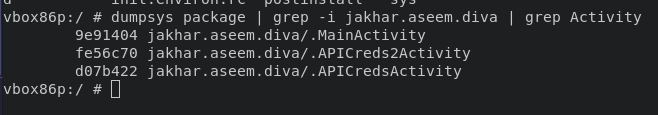

dumpsys package | grep -i jakhar.aseem.diva | grep Activity

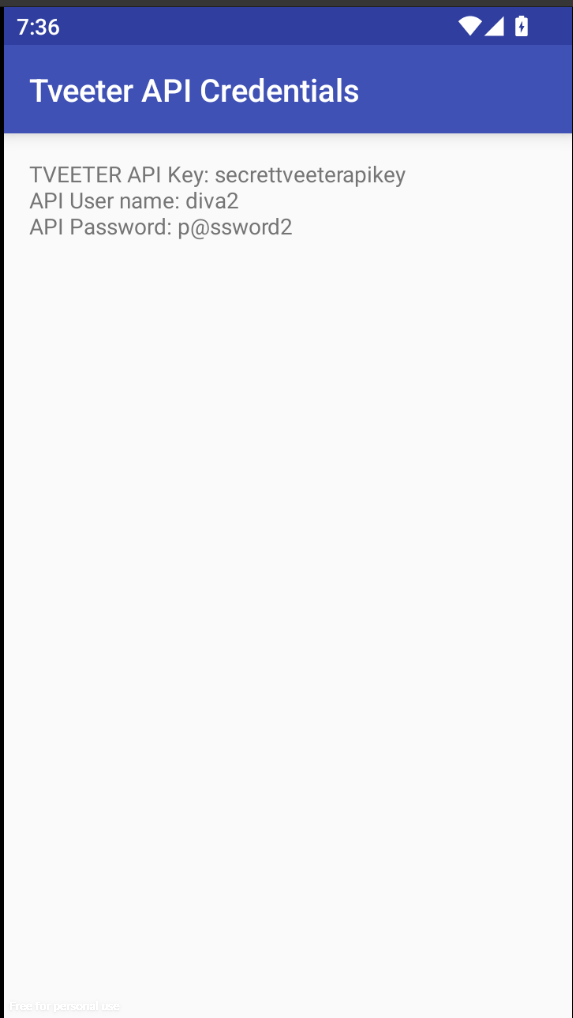

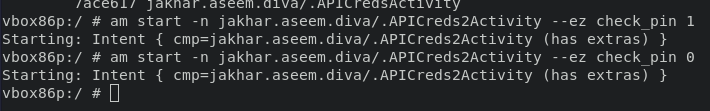

Googled and found out that –ez extra_key extra_boolean_value flag can be used to pass boolean value to intent, so first tried out check_pin as the parameter name and 1 as the boolean value and it didn’t work and tried 0 as the boolean value and yeah its showing us the API credentials!

am start -n jakhar.aseem.diva/.APICreds2Activity --ez check_pin 0

11. Access control issues Part-3

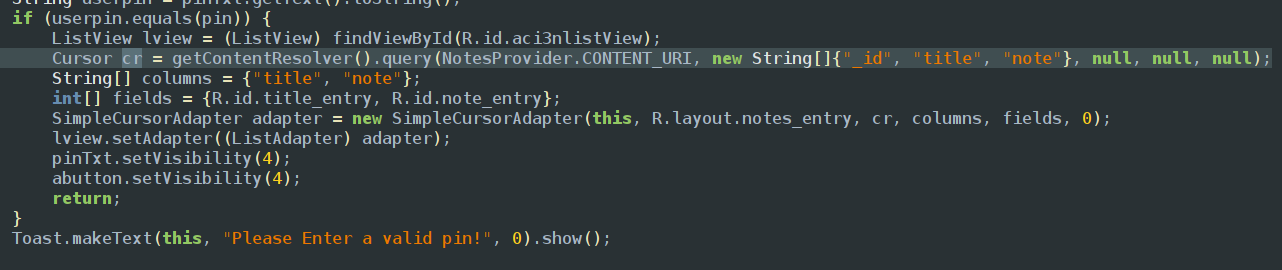

In this we needed to access the private notes from outside the without a password. So in the source code I was able to see that a cursor is being created. Cursor contain the query request to be showed in the UI.

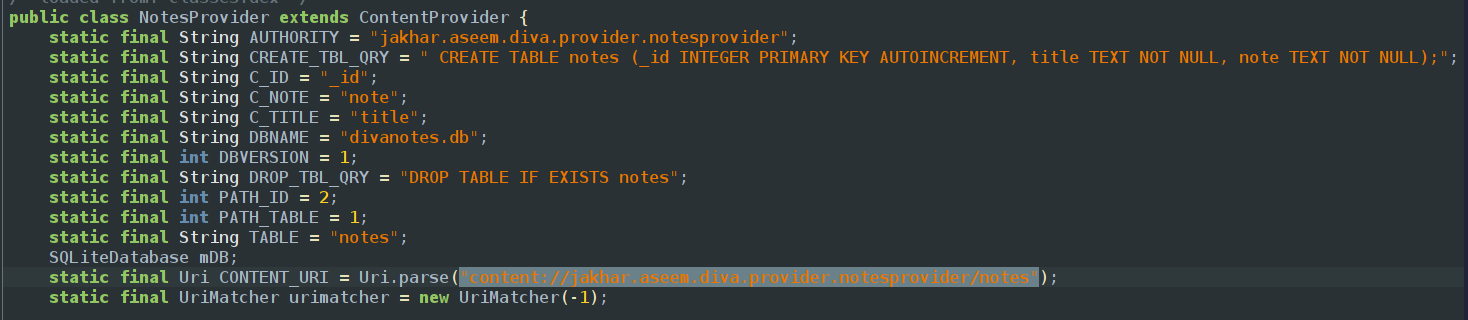

In the query here we can see that it requests something from CONTENT_URL in the NotesProvider class. Examining the class I was able to find that CONTENT_URI holds the URI of the content provider.

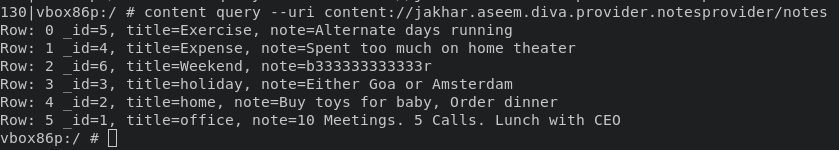

I tried to run a query accessing this URI and yeah its showing all the private notes!

12. Hardcode2Activity

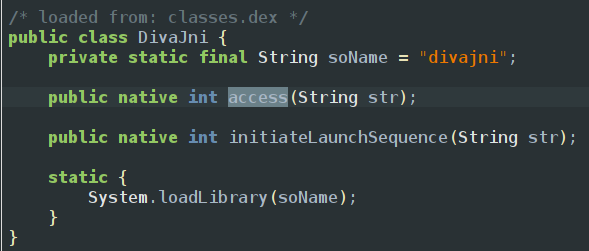

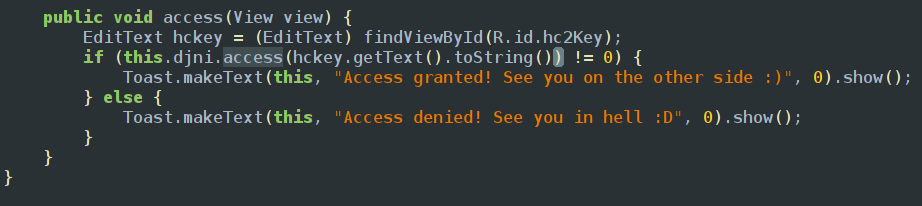

In the source code we can see that a method named access is being called inside the if condition that checks for the password. This access method actually is declared in the DivaJni class which is the java class of the JNI.

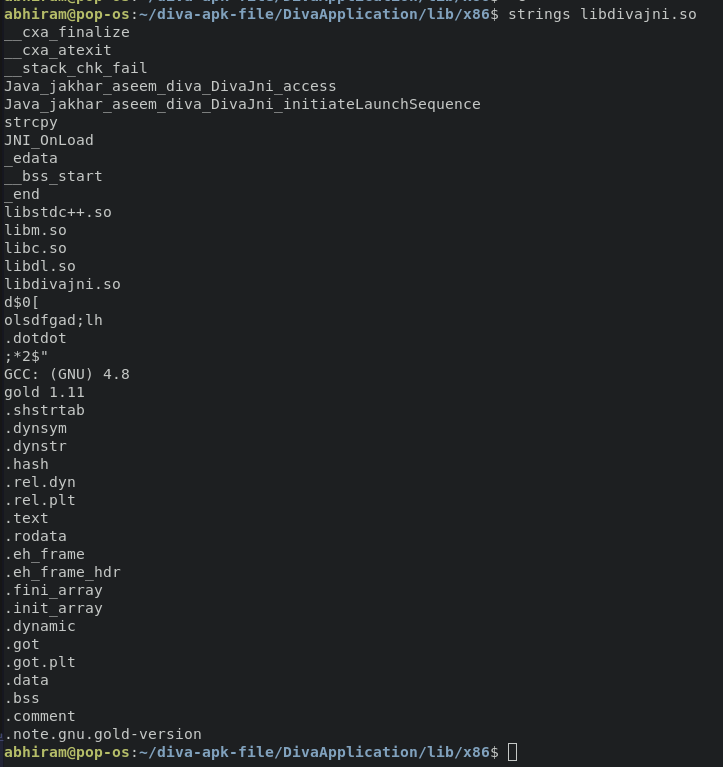

The method access passes a parameter str which hold the vendor key. I ran strings command on the libdivajni.so native library file to find the value of the variable str which is **in the cpp file of JNI and got many strings in it.

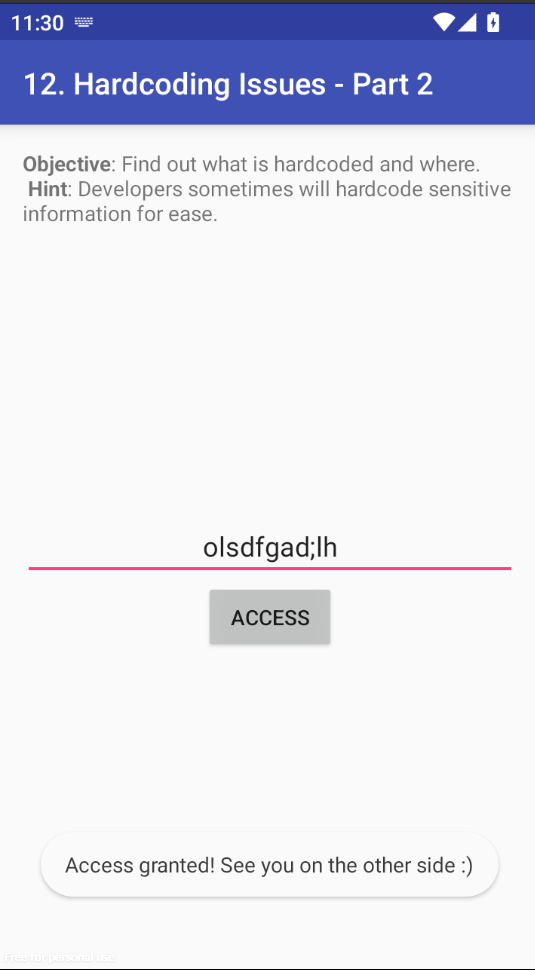

Tried possible matching vendor key in the app and yeah the second string gives the access!

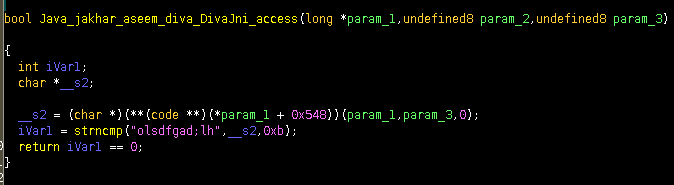

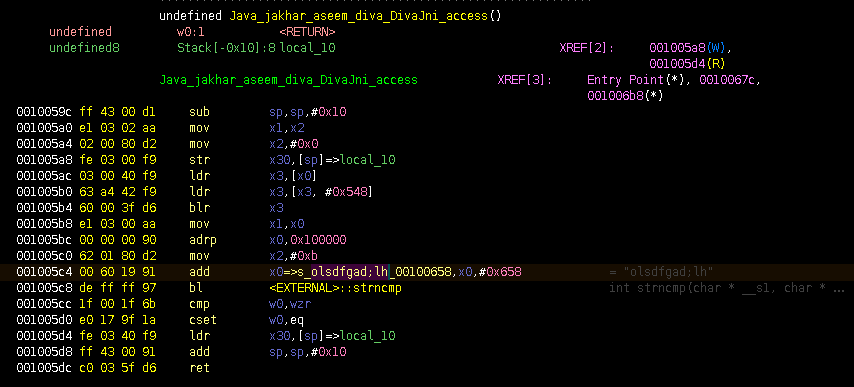

I analyse this also using ghidra. I located the function and checked for the string that is being compared and yeah I am able to access with that string!

13. Input validation issue - Part 3

memory corruption vulnerability

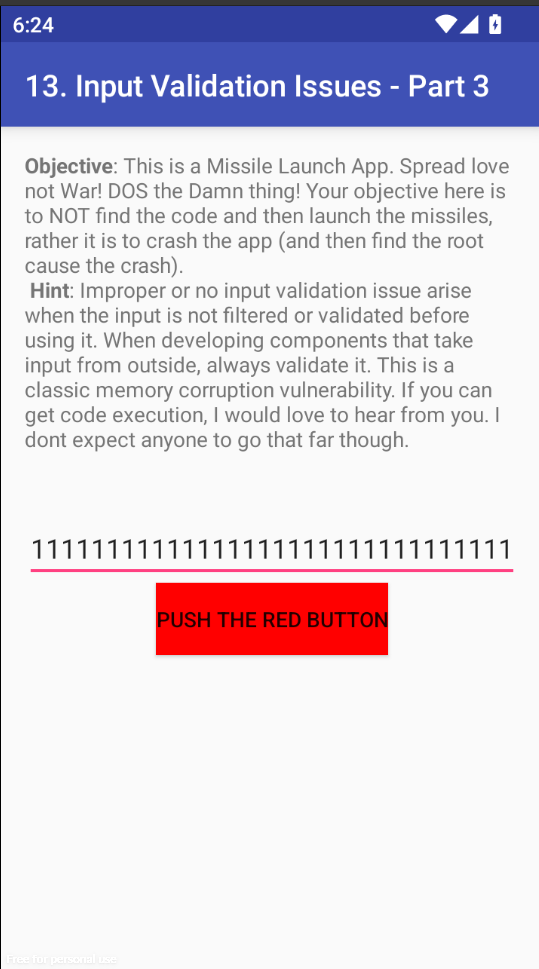

To overflow the memory I tried the maximum input that can be entered in the edit text box and yeah its crashing the app!

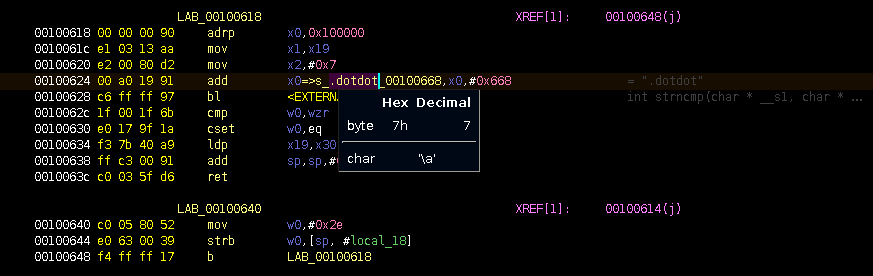

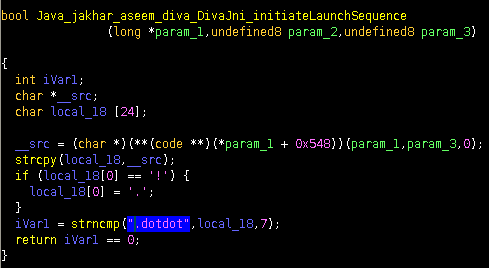

Further investigating in the source code of the app we can see that there is a method initiateLaunchSequence being passded inside a if condition. Then I checked the method and found it was inside the java class of the JNI, a string parameter was also being passed inside it. So I analysed the app using ghidra then we can see that a string is being compared here.

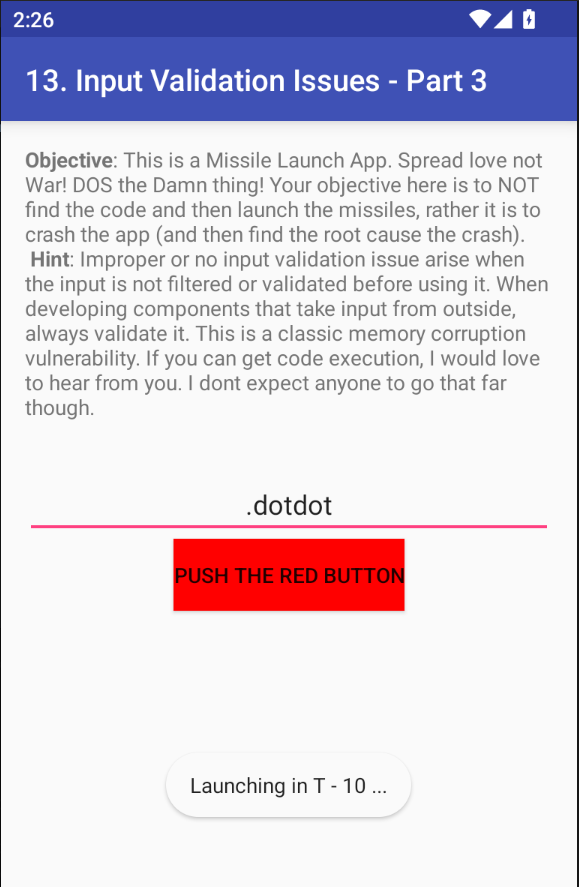

And yeah trying that string gives us the toast message!
